The CE100 USB KVM extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console.

The CE100 improves on previous designs by incorporating a compensation adjustment function at the remote unit for greater video quality; using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.

Extends local PC VGA/keyboard/mouse to remote side

Uses Cat 5e cable to connect the local and remote units

Easily add or remove computers connected to the installation

Supports real time DDC communication

Superior video quality

Support manual compensation adjustment for better video quality

No external power supply needed for local unit

Wall mountable

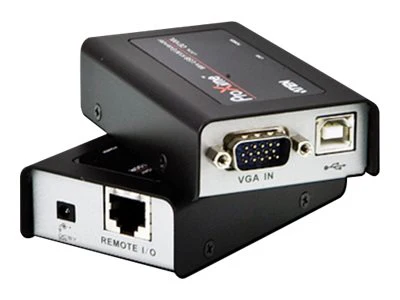

ATEN CE 100 Local and Remote Units - KVM extender - USB - up to 100 m

Basic Specifications

Manufacturer's Part Number: CE100-AT-E
Model: ATEN CE 100 Local and Remote Units
Device Type: KVM extender - USB
Form Factor: External
Dimensions (WxDxH): 5.5 cm x 9 cm x 2.4 cm
Max Transfer Distance: 100 m
Weight: 160 g
Product Description: ATEN CE 100 Local and Remote Units - KVM extender

Networking

Connectivity Technology: Wired
Keyboard / Mouse Interface: USB
Max Resolution: 1920 x 1200 @ 60 Hz
Max Transfer Distance: 100 m
Status Indicators: Power, link OK

Expansion / Connectivity

Interfaces: 1 x USB keyboard ¦ 1 x VGA - HD-15 ¦ 1 x USB mouse

Power

Power Device: External power adapter

Environmental Parameters

Min Operating Temperature: 0 °C
Max Operating Temperature: 50 °C
Humidity Range Operating: 0 - 80% (non-condensing)

General

Device Type: KVM extender
Form Factor: External

Dimensions & Weight

Width: 5.5 cm
Depth: 9 cm
Height: 2.4 cm
Weight: 160 g

Miscellaneous

Cables Included: 1 x VGA / USB cable
Compliant Standards: RoHS, DDC
