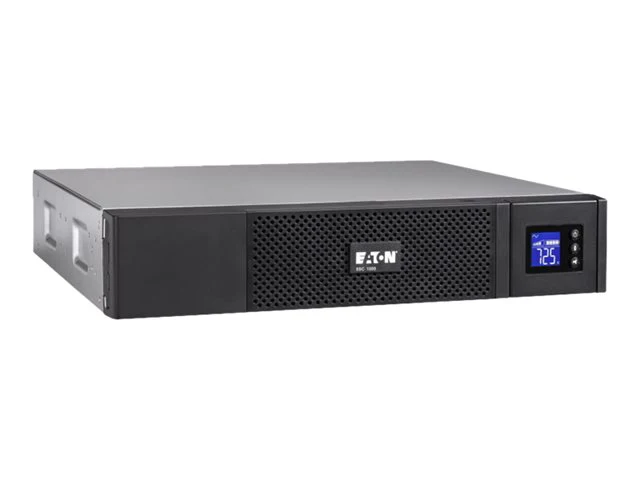

TieDex UK Eaton 5SC 1000iR - UPS - 700 Watt - 1000 VA
Eaton 5SC 1000iR - UPS (rack-mountable) - AC 220/230/240 V - 700 Watt - 1000 VA - 1-phase - 9 Ah - RS-232, USB - output connectors: 8 - 2U - black
Basic Specifications
- Manufacturer's Part Number
- 5SC1000IRBS
- EAN
- 3553340620331
- Manufacturer Warranty
- 2-year warranty
- Product Description
- Eaton 5SC 1000iR - UPS - 700 Watt - 1000 VA
- Model
- Eaton 5SC 1000iR
- Colour
- Black
- Weight
- 15.36 kg
- Input Connectors
- 1 x power IEC 60320 C14
- Device Type
- UPS - rack-mountable
- Product Type
- UPS
- Networking
- RS-232, USB
- Battery
- Lead Acid - 9 Ah
- Dimensions (WxDxH)
- 44 cm x 40.5 cm x 8.62 cm
- Included Accessories
- BS cord 10A
- Power Capacity
- 700 Watt / 1000 VA
- Output Voltage
- AC 220-240 V
- Output connectors
- 8 x power IEC 60320 C13
- Run Time (Up To)
- 5 min at full load
- Input Voltage
- AC 220/230/240 V
- Batteries Qty
- 2
- Rack Size
- 2U
- Input Wiring
- 1-phase
General
- Device Type
- UPS - rack-mountable
- Height (Rack Units)
- 2U
- Colour
- Black
Networking
- Remote Management Interface
- RS-232, USB
Expansion / Connectivity
- Interfaces
- 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - RJ-45
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 90%
Dimensions & Weight
- Width
- 44 cm
- Depth
- 40.5 cm
- Height
- 8.62 cm
- Weight
- 15.36 kg
Miscellaneous
- Included Accessories
- BS cord 10A
- Cables Included
- USB cable ¦ 2 x power cable (IEC) ¦ Serial cable
- Rack Mounting Kit
- Included
- Features
- Advance Battery Management (ABM), LCD display, deep discharge protection
- Compliant Standards
- UL 1778, CB, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Battery
- Quantity
- 2
- Technology
- Lead Acid
- Voltage Provided
- 12 V
- Capacity
- 9 Ah
- Run Time (Up To)
- 5 min at full load ¦ 12 min at half load ¦ 8 min at 70% load
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years
Power Device
- UPS Technology
- Line interactive
- Input Voltage
- AC 220/230/240 V
- Input Voltage Range
- AC 184 - 276 V
- Input Wiring
- 1-phase
- Frequency Required
- 50/60 Hz
- Input Connectors
- 1 x power IEC 60320 C14
- Power Output Connectors Details
- 8 x power IEC 60320 C13
- Output Voltage
- AC 220-240 V
- Power Capacity
- 700 Watt / 1000 VA
- Circuit Protection
- Circuit breaker
- Efficiency
- 96%
- Power Factor (PF)
- 0.7
$295.73
Original: $985.78
-70%TieDex UK Eaton 5SC 1000iR - UPS - 700 Watt - 1000 VA—
$985.78
$295.73Product Information
