TieDex UK StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050 - serial adapter - PCI-X - RS-422/485 x 2

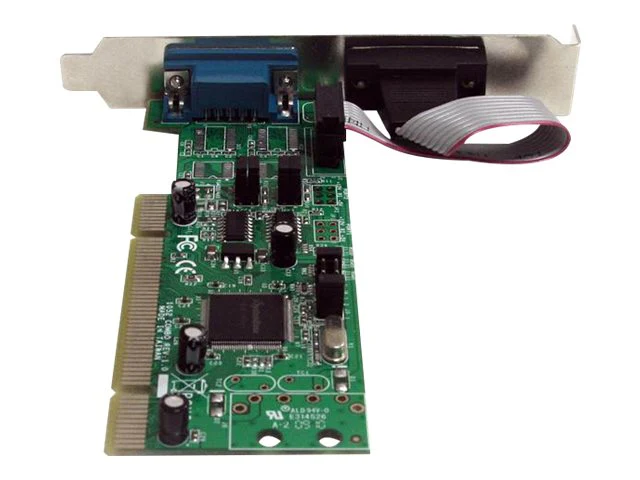

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050 - Serial adapter - PCI-X - RS-422/485 x 2
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
.jpg)
The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Basic Specifications
- Manufacturer's Part Number
- PCI2S4851050
- EAN
- 0065030842587
- Manufacturer Warranty
- Limited lifetime warranty
- Product Description
- StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050 - serial adapter - PCI-X - RS-422/485 x 2
- Model
- StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050
- Weight
- 56 g
- Device Type
- Serial adapter
- Dimensions (WxDxH)
- 4.5 cm x 12 cm x 1.8 cm
- Form Factor
- Plug-in card
- Data Link Protocol
- RS-422, RS-485
- Ports
- RS-422/485 x 2
- Interface (Bus) Type
- PCI-X
- Ports Qty
- 2 ports
General
- Device Type
- Serial adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI-X
Networking
- Ports
- RS-422/485 x 2
- Data Link Protocol
- RS-422, RS-485
- Features
- Flow control
Expansion / Connectivity
- Interfaces
- 2 x RS-422/485 - 9 pin D-Sub (DB-9)
- Compatible Slots
- 1 x PCI-X
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 85 °C
Dimensions & Weight
- Width
- 4.5 cm
- Depth
- 12 cm
- Height
- 1.8 cm
- Weight
- 56 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050 - Serial adapter - PCI-X - RS-422/485 x 2
The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Basic Specifications
- Manufacturer's Part Number
- PCI2S4851050
- EAN
- 0065030842587
- Manufacturer Warranty
- Limited lifetime warranty
- Product Description
- StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050 - serial adapter - PCI-X - RS-422/485 x 2
- Model
- StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - Serial adapter - PCI-X - RS-422/485 x 2 - PCI2S4851050
- Weight
- 56 g
- Device Type
- Serial adapter
- Dimensions (WxDxH)
- 4.5 cm x 12 cm x 1.8 cm
- Form Factor
- Plug-in card
- Data Link Protocol
- RS-422, RS-485
- Ports
- RS-422/485 x 2
- Interface (Bus) Type
- PCI-X
- Ports Qty
- 2 ports
General
- Device Type
- Serial adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI-X
Networking
- Ports
- RS-422/485 x 2
- Data Link Protocol
- RS-422, RS-485
- Features
- Flow control
Expansion / Connectivity
- Interfaces
- 2 x RS-422/485 - 9 pin D-Sub (DB-9)
- Compatible Slots
- 1 x PCI-X
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 85 °C
Dimensions & Weight
- Width
- 4.5 cm
- Depth
- 12 cm
- Height
- 1.8 cm
- Weight
- 56 g
Manufacturer Warranty
- Service & Support
- Limited warranty - lifetime
