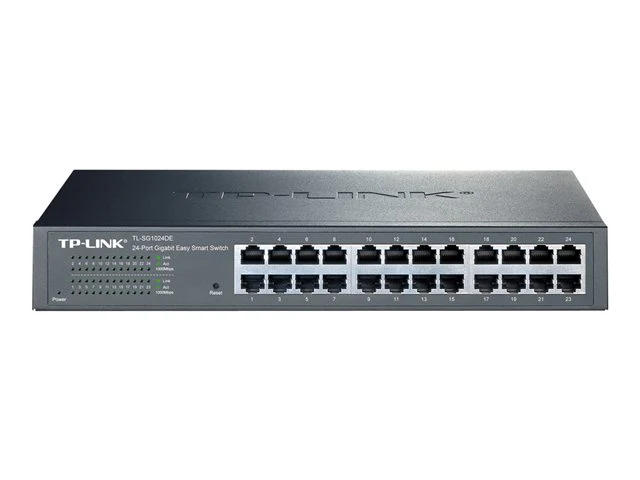

TieDex UK TP-Link JetStream TL-SG1024DE - switch - 24 ports - rack-mountable

TP-Link JetStream TL-SG1024DE - Switch - 24 x 10/100/1000 - rack-mountable

Basic Specifications

Manufacturer's Part Number

TL-SG1024DE

EAN

6935364021252

Product Description

TP-Link JetStream TL-SG1024DE - switch - 24 ports - rack-mountable

Model

TP-Link JetStream TL-SG1024DE

Dimensions (WxDxH)

29.4 cm x 18 cm x 4.4 cm

Features

Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, fanless, loop prevention

Power

AC 120/230 V (50/60 Hz)

Device Type

Switch - 24 ports

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p

MAC Address Table Size

8K entries

Subtype

Gigabit Ethernet

Performance

Switching capacity: 48 Gbps ¦ Forwarding performance: 35.7 Mpps

Enclosure Type

Rack-mountable

Jumbo Frame Support

10240 bytes

Ports

24 x 10/100/1000

Interfaces

Gigabit Ethernet

General

Device Type

Switch - 24 ports

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000

Performance

Switching capacity: 48 Gbps ¦ Forwarding performance: 35.7 Mpps

MAC Address Table Size

8K entries

Jumbo Frame Support

10240 bytes

Features

Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, fanless, loop prevention

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 801.1p

Dimensions & Weight

Width

29.4 cm

Depth

18 cm

Height

4.4 cm

Miscellaneous

Rack Mounting Kit

Included

Compliant Standards

FCC

Expansion / Connectivity

Interfaces

24 x 1000Base-T RJ-45

Power

Power Device

External power adapter

Voltage Required

AC 120/230 V (50/60 Hz)

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 90% (non-condensing)

Min Storage Temperature

-40 °C

Max Storage Temperature

70 °C

Humidity Range Storage

5 - 90% (non-condensing)
