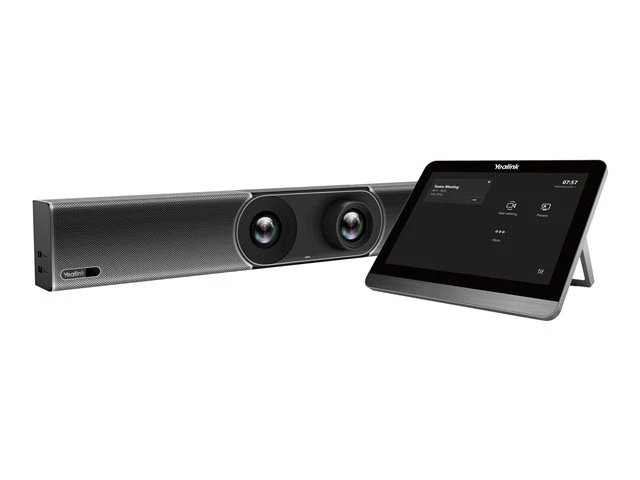

TieDex UK Yealink MeetingBar A30 - Teams Edition - video conferencing device

Yealink MeetingBar A30 - Teams Edition - video conferencing device

Basic Specifications

Manufacturer's Part Number

A30-020-TEAMS

EAN

0841885105806

Networking

Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, Wi-Fi

Video Input

Digital video camera

Video Output

Codec board

Codec

H.264, H.264 High Profile

VoIP Protocols

SRTP

Power

AC 120/230 V

Model

Yealink MeetingBar A30

Product Type

Video conferencing device

Device Type

Video conferencing device

Dimensions (WxDxH)

70 cm x 9.8 cm x 12.1 cm

Audio Output

Speaker(s) - stereo

Product Description

Yealink MeetingBar A30 - Teams Edition - video conferencing device

Audio Input

8-microphone array

Video Output

Type

Codec board - integrated

Digital Video Standard

High-Definition Multimedia Interface (HDMI)

Networking

Type

Network adapter

Connectivity Technology

Wireless, wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth, Wi-Fi

Network / Transport Protocol

TCP/IP, DHCP, HTTP, HTTPs, IPv4, IPv6

Features

VLAN support, web server, Quality of Service (QoS), reset button, LLDP support, security lock slot (cable lock sold separately), echo cancellation, CHAP support

Compliant Standards

IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x

Expansion / Connectivity

Interfaces

2 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x accessory - RJ-45 ¦ 1 x audio - line-In - mini-phone 3.5 mm ¦ 1 x audio - line-out - mini-phone 3.5 mm

Video Input

Type

Digital video camera (colour) - integrated

Features

Microsoft Teams compatible, automatic speaker tracking, auto privacy shutter

Angular Field Of View (max, degree)

120

Power

Power Device

Power adapter - external

Voltage Required

AC 120/230 V

Power Consumption Operational

15 Watt

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 95%

General

Device Type

Video conferencing device

VoIP Protocols

SRTP

Video Codecs

H.264, H.264 High Profile

Quality of Service

IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p

IP Address Assignment

DHCP

Security

256 bit AES, EAP-MD5, IEEE 802.1X, TLS, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, PEAP, EAP-MSCHAPv2

Network Protocols

HTTP, HTTPS, Link Layer Discovery Protocol (LLDP), SRTP, SNTP

Width

70 cm

Depth

9.8 cm

Height

12.1 cm

Built-in Devices

Microphone array, 2 cameras, dual 5 W speakers

Miscellaneous

Cables Included

1 x network cable - 3 m ¦ 2 x HDMI cable - 1.8 m

Compliant Standards

ISO 9001, NOM, CCC, FCC, RoHS, ANATEL, REACH, CEC

Software / System Requirements

Software Included

Android 9.0

Audio Output

Type

Speaker(s)

Output Power / Channel

5 Watt

Sound Output Mode

Stereo

Audio Input

Type

8-microphone array - integrated
